Choose Your Header Style for Existing Tracks

Hanging Header Style

Soft top

4- IN -1 Hanging Header

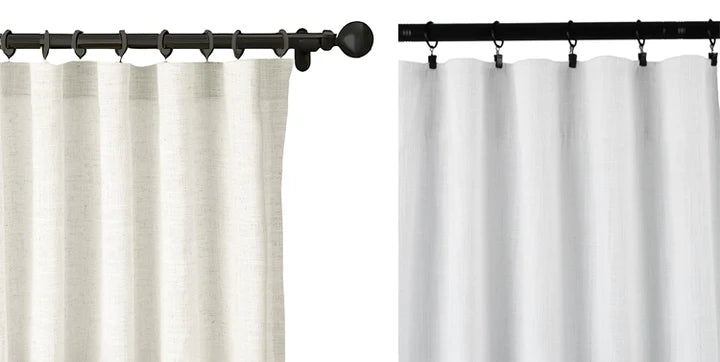

Versatile 4-in-1 construction: Hook Belt, Rod Pocket, Back Tab and Clip Ring. It works for rods with rings, rod with clip rings and pole.

Hook Belt: hang with metal pin hooks. (included)

Clip ring: hang with clip rings (not included)

Rod Pocket: hang with rod pocket for bunched-like look.

Back Tab: hang with back tab for pleated-like look.

Back Tab

  • Tab height 4 inches. Pocket size 3 inches.
  • 6 tabs per 40 in width, 8 tabs for 50 in width, 10 tabs for 72 in width, 12 tab for 84 in width, 15 tabs for 100 in width.
  • Side hem 1 inch, bottom hem 3-1/8 inches.
  • If rod length is 100 inches, order 200% fullness width for folds, then order 2 panels each 100 inches wide.
  • It works for rod or rod with clip rings.

Rod Pocket

  • Pocket 3 inches. Top flange is optional.
  • Side hem 1 inch, bottom hem 3-1/8 inches.
  • If rod length is 100 inches, consider 180% width for fullness, folds, order 2 panels each 75 inches wide.
  • It works for rod or rod with clip rings.

Tab Top

  • Tab height 4 inches, 6 tabs per 40 inches.
  • Side hem 1 inch, bottom hem 3-1/8 inches.
  • Curtain length is measured from the top of the pole to floor.
  • If rod length is 100 inches, consider fullness 180-250% width for folds, order 2 panels each 60-100 inches wide.
  • Velcro tab top allow to remove and install easily, and it is optional for outdoor curtains or room divider.
  • It works for rod.

Hook Belt

  • Adjustable plastic hooks 3 inches. 6 pin hooks per 40 inches width.
  • Side hem 1 inch, bottom hem 4 inches.
  • Measure length from the eye ring to floor.
  • If rod length is 100 inches, consider 180-250% fullness to order more width for folds, order 2 panels each 75-100 inches wide.
  • It works for rod with rings.

Hanging Header Style

Pleated style

Tailor Pleat

  • Tailor pleats are more gathered than other headings and have permanent sewn-in pleats.
  • Pleats space apart 5.5-6.5 inches.
  • Panel width is the width that pleats already set. 180% fabric width is used for pleats.
  • Metal pin hooks are not included. Only adjustable pin hooks are included.
  • Length is measured from the eyelet ring where the curtain hooks are attached to floor.
  • It works for the track, traverse rod, channel rod, and pole with rings.

Triple Tailor Pleat

  • Triple tailor pleats are more gathered than other headings and have permanent sewn-in pleats.
  • Pleats space apart 5.5 inches.
  • Panel width is the width that pleats already set.
  • Metal pin hooks are not included. Only adjustable pin hooks are included.
  • Length is measured from the eyelet ring where the curtain hooks are attached to floor.
  • It works for the track, traverse rod, channel rod, and pole with rings.

Pinch Pleat

  • Pinch pleats are more gathered than other headings and have permanent sewn-in pleats for a more luxurious look. It is also called Double Pleated.
  • It works for the track, traverse rod, channel rod, and pole with rings.
  • Comes with adjustable plastic pin hooks.

Pinch Pleat with Back Tab

  • A classic pleat pleat style with back tab.
  • Normally, the tab height is 8cm, fitting for rods with a diameter of 1.5 inches and below.
  • Comes with adjustable plastic pin hooks.
  • Can be hung on rings or rod directly. Pay attention to height measurement due to 2 different ways of hanging.

Triple Pleat

  • Triple pleats are more gathered than pinch pleats and have permanent sewn-in pleats for a more luxurious look.
  • Pleats space apart 5.5 inches.
  • Length is measured from the eyelet ring where the curtain hooks are attached to floor.
  • If rod or track length is 100 inches, then order 1 panel 100 inches width or 2 panels each 50 inches width.
  • It works for the track, traverse rod, channel rod, and pole with rings.
  • Comes with adjustable plastic pin hooks.

Goblet

  • Goblet pleats are more gathered than other headings and have permanent sewn-in pleats.
  • Pleats space apart 5.5 inches.
  • Panel width is the width that goblet pleats already are made. 180% fabric width is used for pleats.
  • Length is measured from the eyelet ring where the curtain hooks are attached to floor.
  • It works for the track, traverse rod, channel rod, and pole with rings.

Inverted Box Pleat

  • It is formed by two equal folds of fabric folded toward one another so they meet at the center of the pleat on the front of the fabric. It is what a box pleat looks like from behind.
  • Pleats space distance 5 inches.
  • Measure length from the eye ring to the bottom. Rod rings are not included, which are purchased separately.
  • If rod length is 100 inches, order 2 panels each 50 inches width.
  • It works for rods with rings and track.

Pencil Pleat Tape

  • Pencil Pleat Tape with traditional pleats and parallel folds that are formed uniformly, in the same size, when the cords are pulled.
  • Pencil pleat tape for curtains in the home, various spaces and net curtains.

Hanging Header Style

Grommet

Grommet

  • Inside diameter 1.6 inches, outside diameter 2.25 inches.
  • 6 grommets for 42 in wide, 8 for 50 in, 10 for 72 in, 12 for 84 in, 14 for 100 in, 16 for 120 in, 22 for 150 in, 26 for 180 in.
  • Side hem 1 inch, bottom hem 3-1/4 inches.
  • 4 Grommet Colors : Antique bronze, Nickel, Black, Aluminum (outdoor curtain for rustproof)
